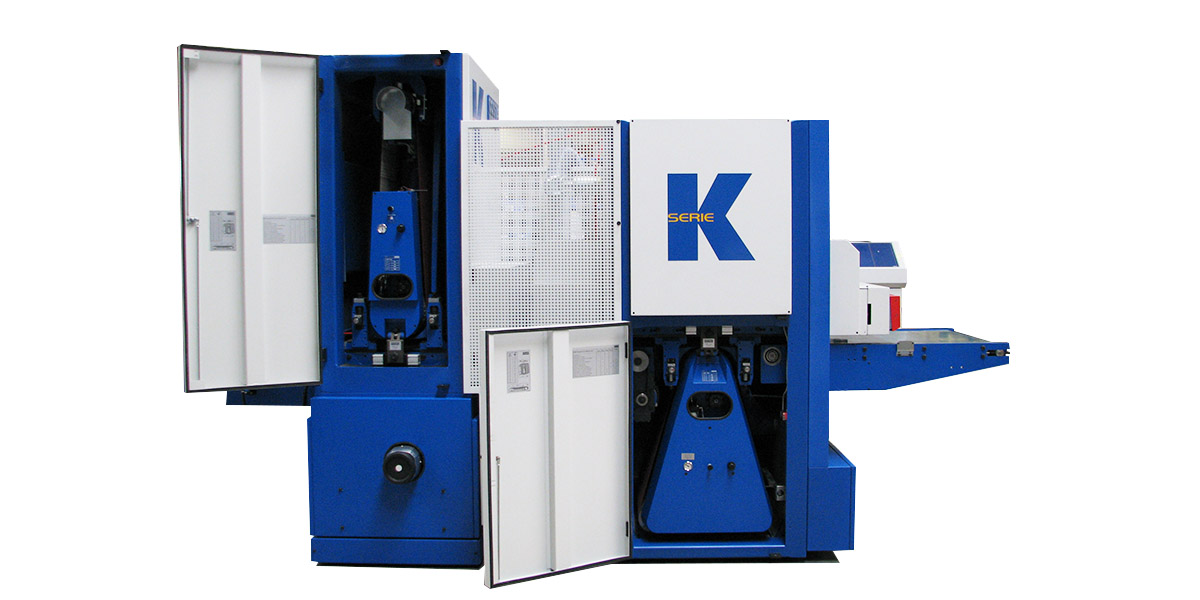

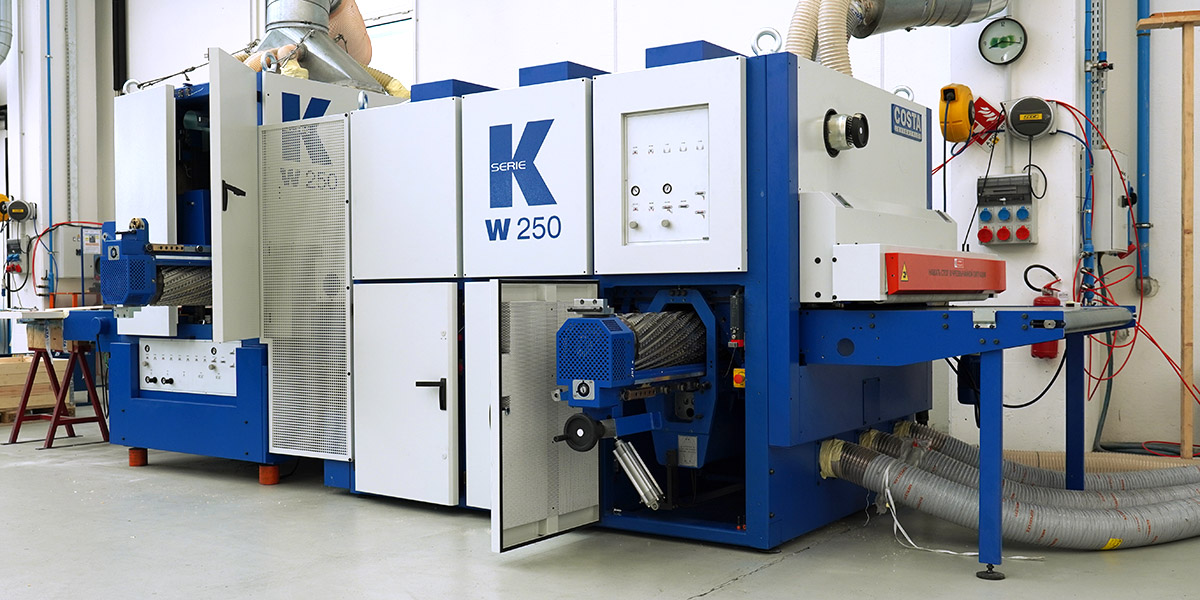

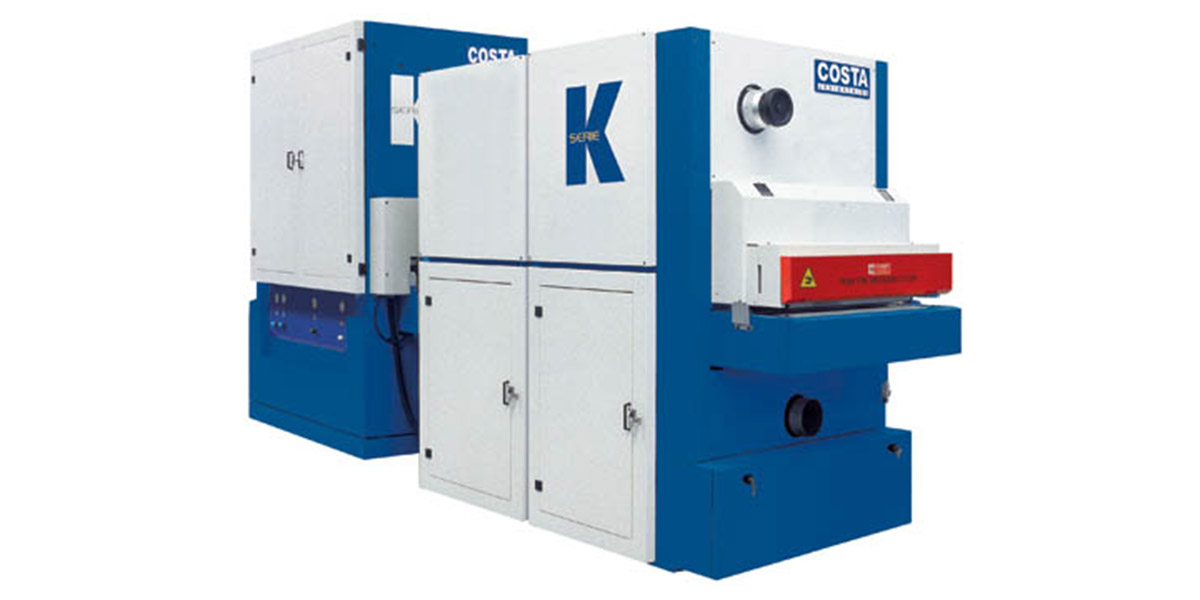

Top&bottom calibrating/sanding machines available in working width of 650-1350-1650 mm.
Thanks to our modular concept, it is possible to build a custom “working center” by inserting the proper working units required for each application.
Different levels of finish can be achieved in one pass by combining more working units in one frame.
|Main Technical features|
|Working width||650-1350-1650 [mm]|
|Configuration of working units||on request|
|Bottom abrasive belt length||2620 [mm]|
|Top abrasive belt length||2620/3250 [mm]|
Bottom Planer head
Bottom Sectioned Pad
Bottom Longitudinal Brush
Bottom Longitudinal brush with abrasive inserts
Top Planer head
Top Sectioned Pad
Top Longitudinal Brush
Top Longitudinal brush with abrasive inserts
Top Planetary unit
Top Vertical Cross Brushes Ø 85 mm
Top Vertical Cross Brushes Ø 130 mm
