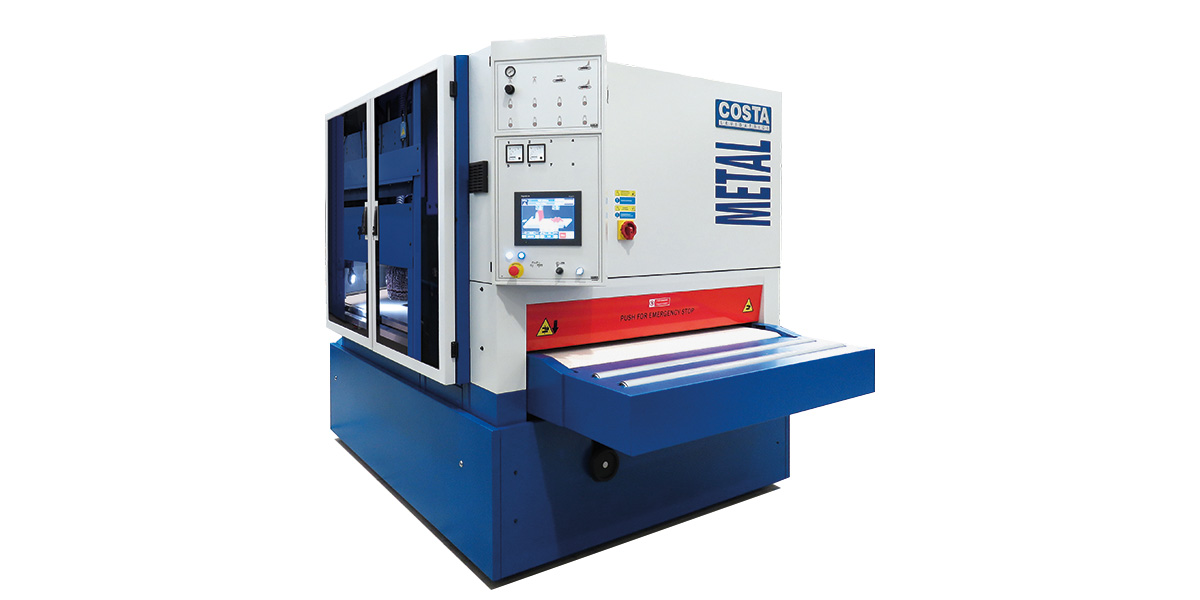

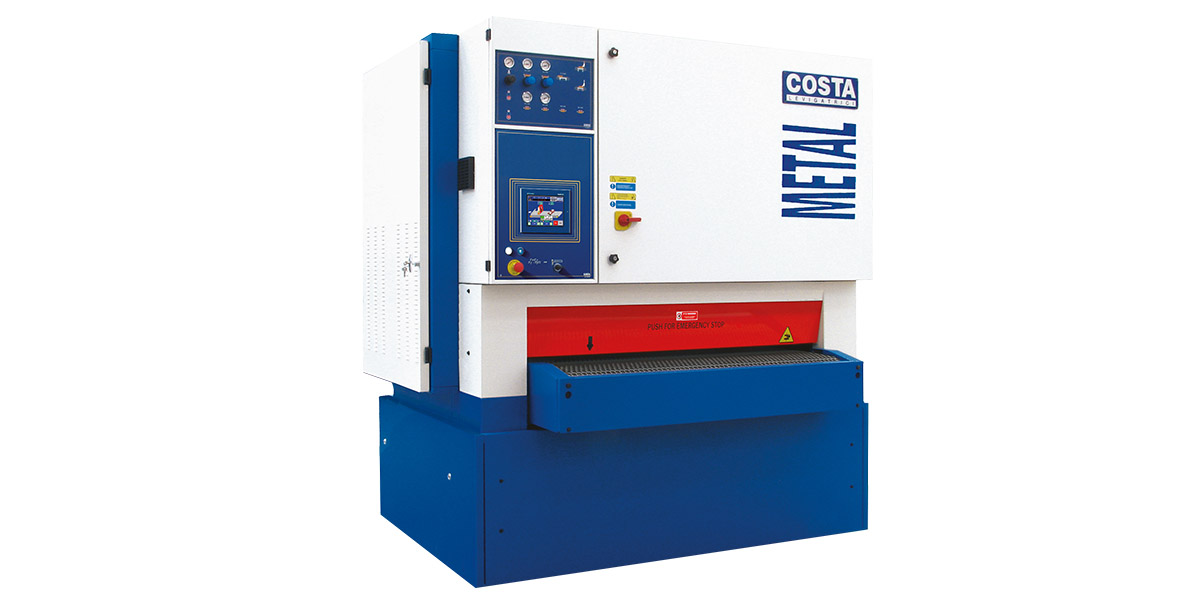

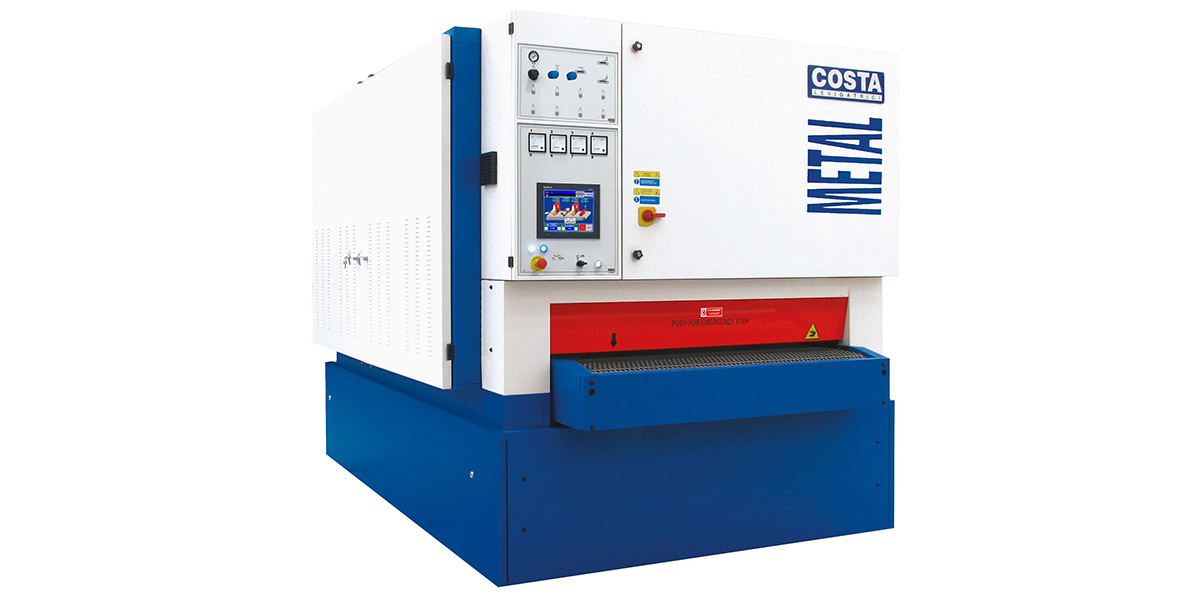

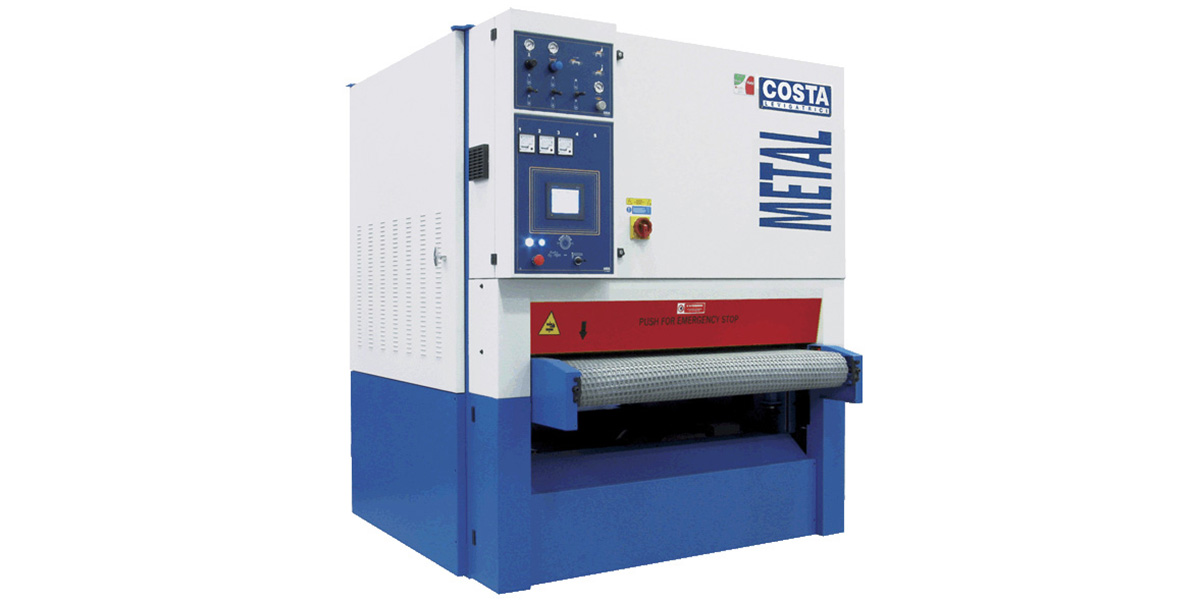

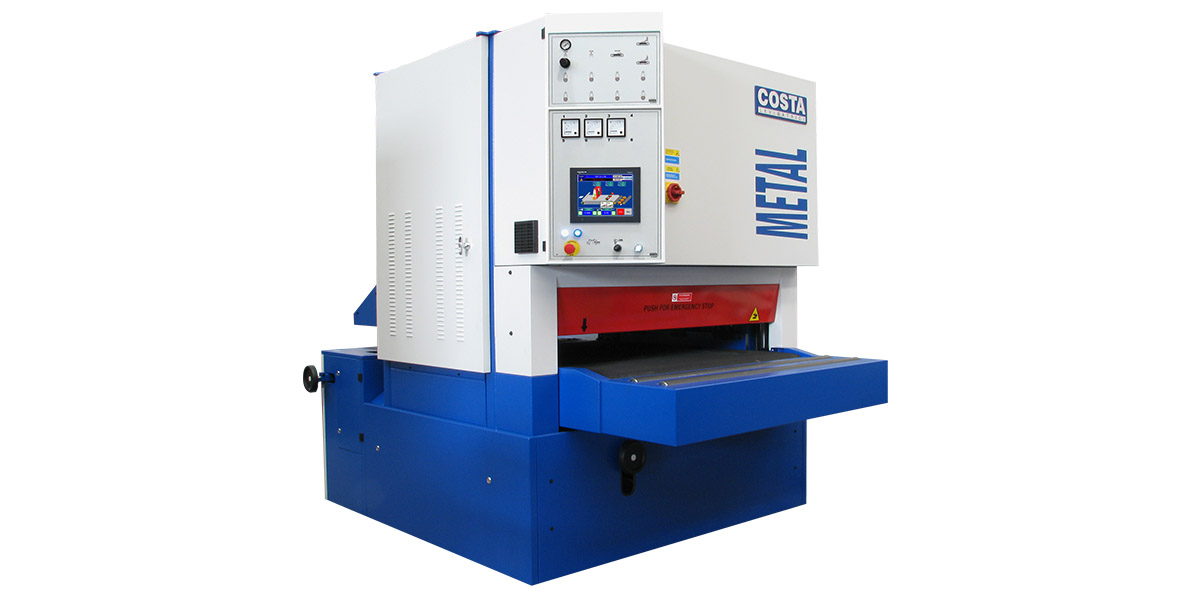

Universal working center for deburring and finishing ferrous and non ferrous materials.
These machines are available with constant feed height for in-line operation, and to simplify the processing of large parts.
They are available with a working width of 1350mm and can process parts of weight up to 400 Kg.
The machines utilize 2620mm longitudinal abrasive belts that guarantee longer life and a consistent finishing, reducing the consumable costs.
Thanks to our modular concept it is possible to build a custom “working center” by inserting the proper working units required for each application.
The frame is engineered to hold up-to 4 internal working units and two auxiliary units.
The high rigidity of the frame and feed table of this machine – combined with the advanced mechanics and electronic features – make of this series an universal working center for deburring and finishing.

Main Technical features


Working width 1350 [mm]
Main Working units 1 up to 4
Constant pass-line
from floor
900 (1000) [mm]
Abrasive belt length 2620 [mm]

Available Working Units
