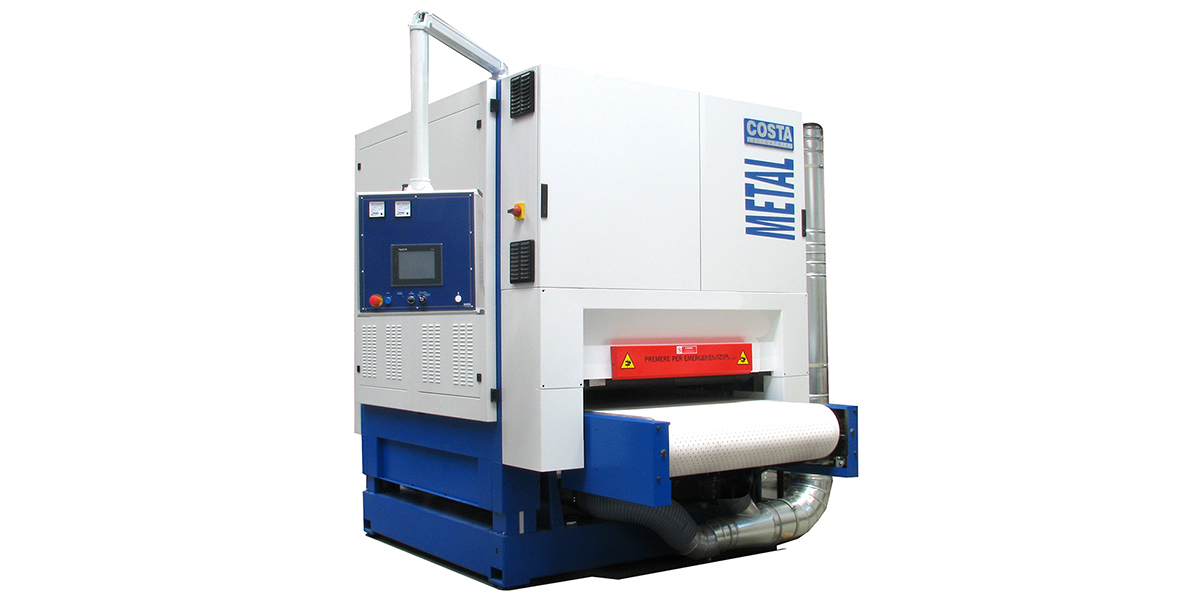

This series combines the heavy-duty technology of industrial grinding machines with working units dedicated for deburring applications.
Available in working widths from 650 mm to 1650 mm, these machines can be equipped with 1 and up-to 5 internal working units, and up to 2 external units. Different levels of finish can be achieved in one pass by combining more working units in one frame.
The 2620 – 3250 mm length abrasive belts guarantee a professional finish and consistent surface roughness, also on the most difficult materials.
The longer abrasive belts become even more important in polishing operations to extend abrasive lifetime while maintaining a constant level of abrasion.
The SB250 brush units, with quick extraction system, can add a Scotch-Brite™ finish to stainless steel, aluminium, etc.
It is therefore possible to deburr, polish, and brush finish at an industrial level with one machine only.
Main Technical features |
Working width | 650÷1650 [mm] |
Main Working units | 1 up to 5 |
Constant pass-line from floor |
900 (1000) [mm] |
Abrasive belt length | 2620 / 3250 [mm] |
